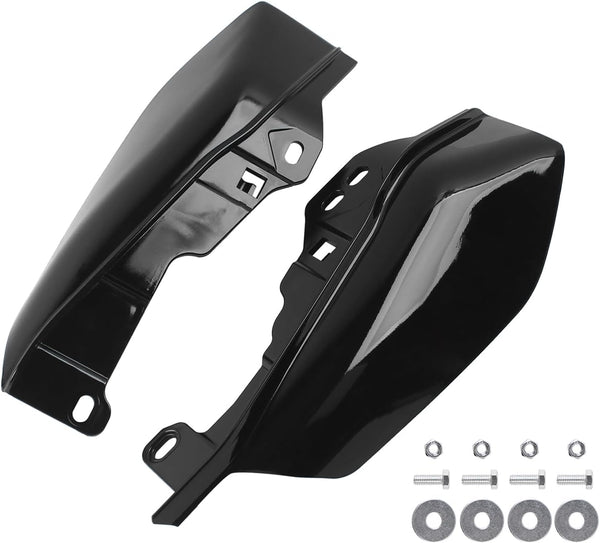

How to Choose Mid-Frame Air Deflectors for Harley Touring (2009–2024)

If you ride a 2009 to 2024 Harley Touring or Trike model, the first question is not which mid-frame air deflectors for Harley Touring look best. It is whether the part bolts onto your exact bike. Fitment on these bikes is year- and package-specific, confirm the part number against your exact model year and whether your bike runs a CoolFlow Fan kit before you order. The standard Harley-Davidson mid-frame air deflector's own fitment note excludes several recent model years and states it is not compatible with 2017-later models equipped with the CoolFlow Fan kit, so a deflector that fits one rider's 2016 Street Glide can be the wrong part for a 2024. This guide gives you a criteria framework for judging any deflector, then a verified install and clearance procedure so the part you buy stays put.

MotorFlagKing was founded by riders in the American motorcycle community and began in a garage, building rider-tested equipment for touring bikes. The brand's work centers on precision-fit, bolt-on accessories for Harley-Davidson motorcycles, including wind-deflection components tested for highway speeds. That focus on airflow and fitment on Harley touring models is the basis for the guidance in this article.

What Your Bike Actually Needs Before You Shop

Four answers decide everything that follows, and you can find all of them in about ten minutes. Write them down before you read further, because every criterion in this guide keys off them.

1. Your exact model year and model code. Not "a Street Glide" but the year and the code on the VIN sticker. Fitment here is year-and-code specific, not model-family specific.

2. Whether a CoolFlow Fan kit is fitted. This is the fork most buyers miss. The standard mid-frame air deflector, P/N 58002-09A, is not compatible with 2017-later models equipped with CoolFlow Fan P/N 26800120, 26800121 or 26800128, per the fitment exclusions on Harley's own product page. If your bike has the fan, you need the CoolFlow-compatible deflector kit, P/N 57200157 instead. Not sure whether the fan is fitted? The CoolFlow Fan's own fitment list covers 2017-2023 FLHX, FLHXS, FLHT, FLTRX and FLTRXS, 2017-2022 FLHXSE and FLTRXSE, and 2023-2025 FLTRT.

3. What already occupies the mid-frame area. Crash bars, lower fairings, flag mounts and highway pegs all compete for the same real estate.

4. Whether your bike is a Trike. Trike fitment tracks the Touring list but adds its own clearance questions at the rear of the mid-frame.

One exclusion applies regardless of the fan question. If your bike is a 2023-later FLHXSE or FLTRXSE, a 2024-later FLHX, FLTRX or FLTRXSTSE, or a 2025-later FLHXU or FLTRXRRSE, the standard deflector is excluded, and so is the smoked Lexan deflector, P/N 57200356, which is otherwise stock on 2020-later CVO models. Harley updates these lists by model year, so confirm against the current product page before you buy.

Pro Tip: Write your four answers down before reading further. The fitment criteria, the material comparison and the installation steps all branch on them, and a wrong answer on question 2 sends you to the wrong part number.

The Fitment Criteria That Decide Whether Mid-Frame Air Deflectors for Harley Touring Will Bolt On

With those four answers in hand, three checks decide whether a set of mid-frame air deflectors for Harley Touring will bolt on: model-year and model-code fitment, CoolFlow Fan compatibility, and whether the part reuses your factory fasteners or ships its own hardware. Run them in that order. Fitment disqualifies the most buyers, fan clearance catches the rider who already owns a fan-equipped bike, and hardware is the detail that turns a bolt-on job into a hardware-store trip.

The exclusions matter because "fits 2009-2024 Touring" is a range, not a promise. The standard part's fitment note carves out the newest fairing variants, and those exclusions track model codes rather than trim names, so a rider who shops by "Street Glide" instead of by code can land on a part the OEM does not list for their bike.

The CoolFlow Fan Fork

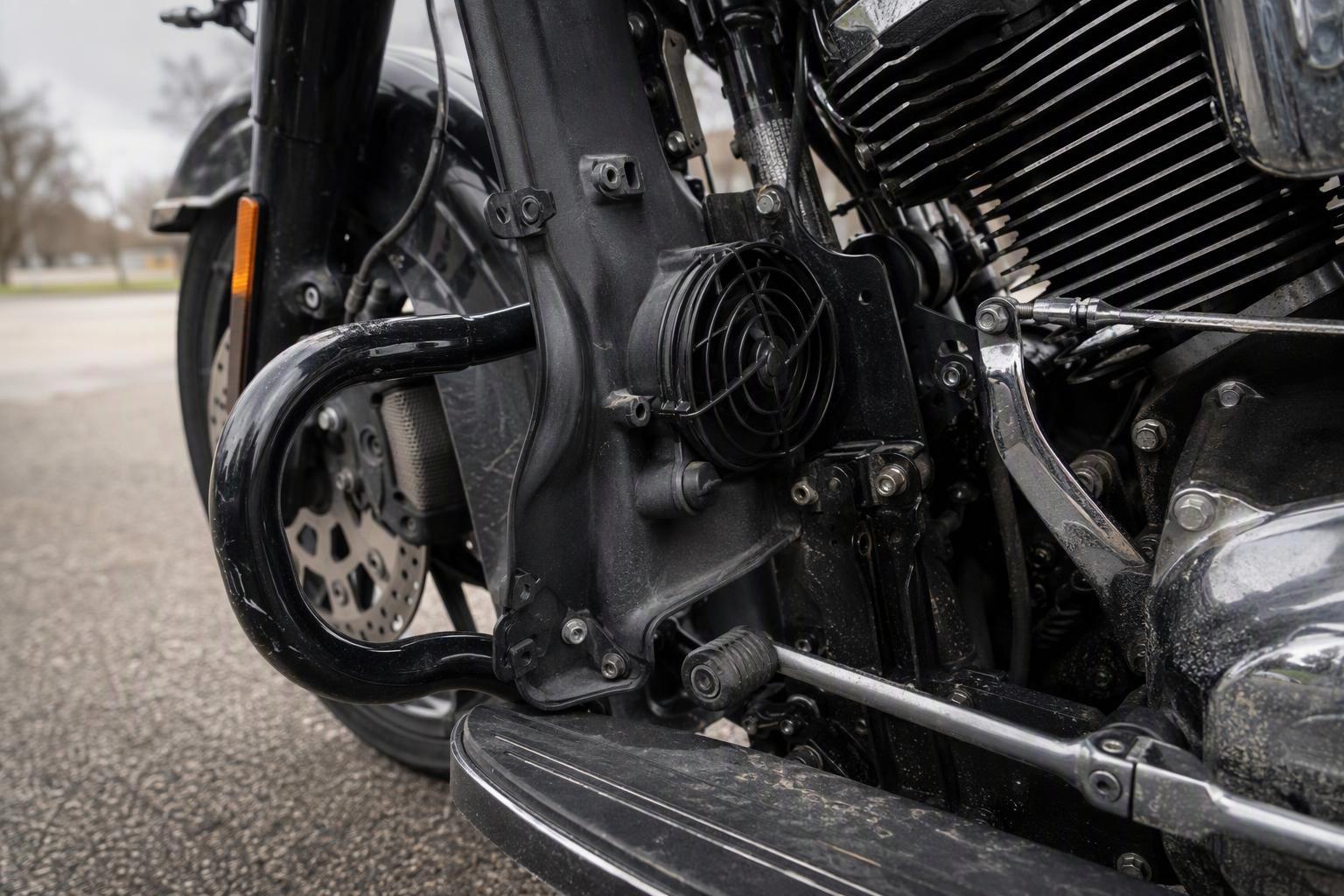

The fan kit and the standard deflector want the same real estate. Harley's own fitment note states the standard deflector is not compatible with '17-later models equipped with CoolFlow Fan, naming kits 26800120, 26800121 and 26800128. If your bike runs one of those three, the standard part is out.

The kit Harley lists for fan-equipped bikes is P/N 57200157, which the OEM fitment data shows coexisting with those fan part numbers. That single part number is the fork in the road: buy it, or buy nothing.

One more thing worth knowing before you order: the fan's own operating notes describe it switching off at 40 mph and back on at 35 mph, and note that some bikes need a dealer Digital Technician update for the fan logic. A deflector that changes airflow around the fan is worth checking against that behavior, not just against the mounting holes.

Material and Finish: Smoked Lexan vs. ABS

Material is a finish decision, not a fitment one, so do not let it drive compatibility. The OEM part 57200356 is described as durable smoked Lexan, a dark translucent panel that reads as a factory piece against black fairing lowers. Aftermarket sets are commonly ABS, including an ABS aftermarket set listed at $74.95 for 2009-up Touring and Trike.

One caution on the numbers you may see elsewhere: the widely repeated Lexan 250°F versus ABS 160-180°F heat comparison traces to a single weak upstream source with no readable original, so this article implies no performance difference between the two materials. Buy on fitment and finish, and treat any temperature claim you cannot trace to a manufacturer as marketing.

Red Flags and Deal-Breakers

Deal-breakers are different from must-haves: a must-have is a fitment fact you confirm before buying, a deal-breaker is a listing that stops you from confirming it. Four patterns should end the purchase.

A CoolFlow compatibility claim that does not name the fan part numbers. One aftermarket listing claims CoolFlow compatibility, which the OEM note denies. HOGWORKZ's own fitment note says the same thing, excluding 2017-Up models equipped with the Harley-Davidson CoolFlow Fan on its $69.98 to $129.98 mid-frame air deflectors. Treat any compatibility claim without the fan part numbers as unverified.

⚠️ Warning: A CoolFlow compatibility claim that doesn't name the fan part numbers is the claim to verify, not proof of fitment.

No model-year exclusion list. A listing that covers "2009-2024 Touring" without stating which configurations are excluded is hiding the answer, not simplifying it.

Hardware kit silence. If the listing does not say whether it reuses factory fasteners or ships its own, you cannot plan the install.

A price that undercuts OEM without stating material or finish. An unexplained low price usually means unspecified plastic.

How to Install and Torque Them So They Stay Put

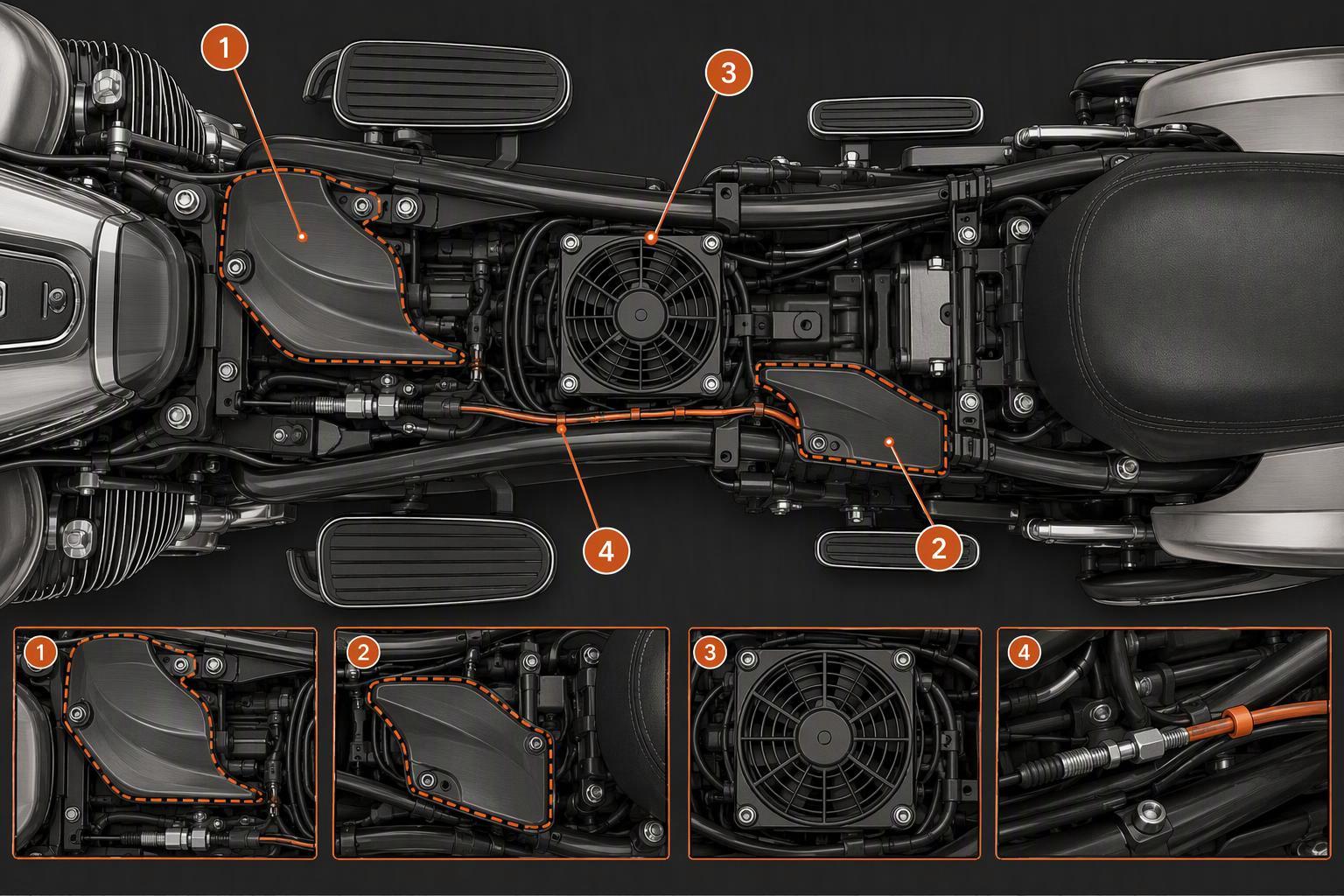

Once the part clears those checks, the factory sequence is short, but the order matters more than the effort. Work through it once, loosely, then torque. By the end of this section you will have both deflectors seated, the U-clip barbs against the frame plate, and the cruise-control cable routed clear.

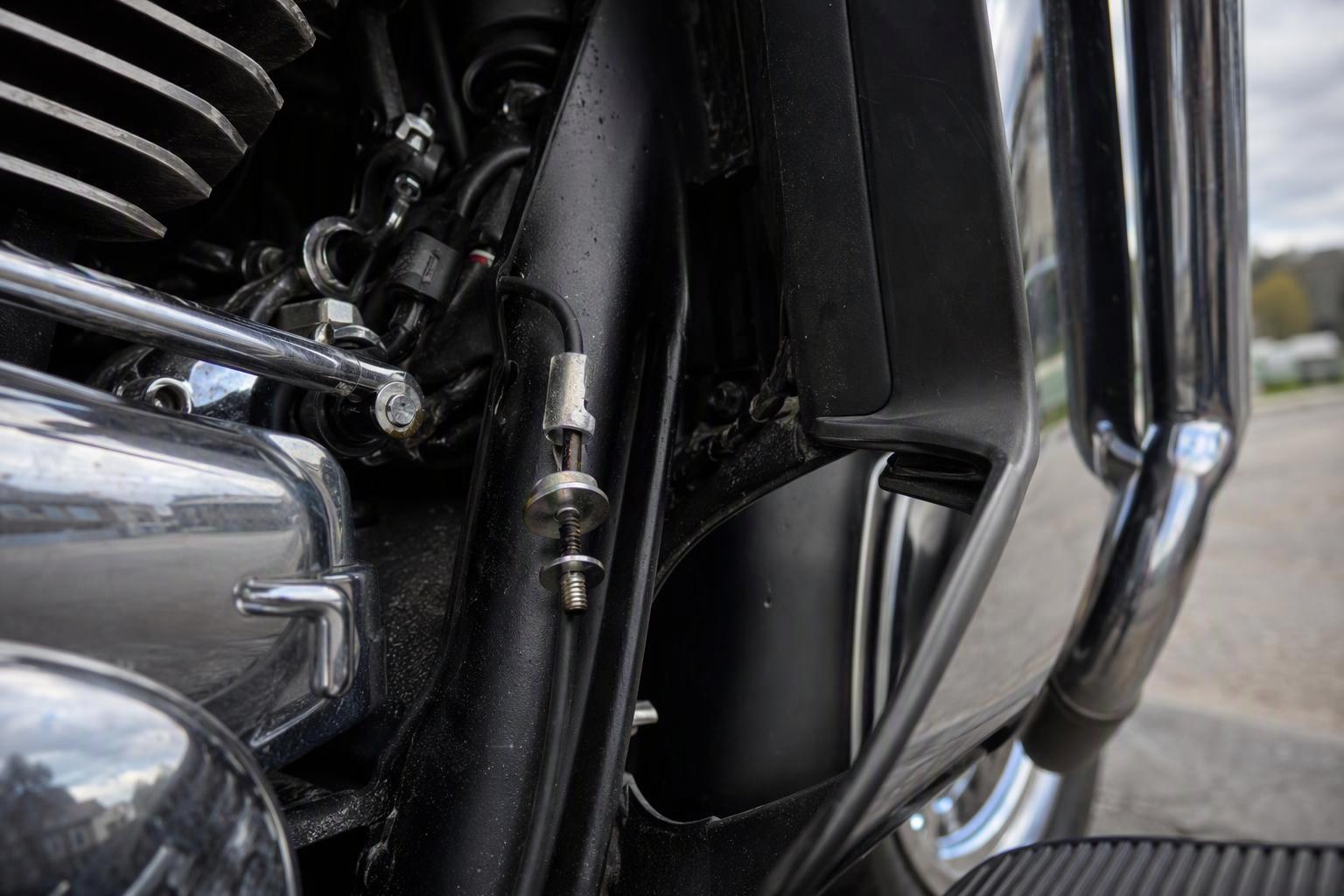

1. Install the cable clamp to the cruise-control cable, if your bike is equipped with cruise control. The hardware the factory procedure actually uses includes cable clamp P/N 10053, well nut P/N 6596, "U" type clip P/N 58439-07, speed nut P/N 8108, flat washers P/N 6036 and 6253W, and button-head screws P/N 923 (0.25-20 x 0.750 in) and P/N 4015 (0.25-20 x 0.875 in), per Harley-Davidson's mid frame air deflectors procedure (2007-01-08).

2. Insert the screw through the cable clamp, washer and left-side deflector, then thread it into the mounting strap speed nut. Leave it finger-tight.

3. Fit the U-clip to the deflector and frame plate with the clip barbs against the frame plate.

4. Verify the cruise-control cable sits above the rounded area of the U-clip. This is the clearance check that keeps the cable off the frame plate.

Pro Tip: Start every fastener loosely, then torque. The top fastener area is awkward to reach, and threading it by hand first is what keeps you from cross-threading it.

The factory instruction not to use LOCTITE is explicit: doing so damages the air deflectors (Harley-Davidson Service Information Portal, undated).

The Torque Numbers and Why Two OEM Documents Disagree

Two Harley-Davidson service documents give different figures, and neither is universal. The factory service procedure's 35–55 in-lb step covers the left- and right-side deflector screws, with a separate special-nut step at 60 in-lbs (6.8 N·m), tightened roughly 2-1/2 turns (Harley-Davidson Service Information Portal, 2007-01-08). The second service document specifies 25–35 in-lbs (2.8–3.9 N·m) for the deflector screws (Harley-Davidson Service Information Portal, undated).

Use the figure that matches the document for your part number, and confirm with a dealer if you are unsure. Over-torquing risks cracking the deflector; under-torquing is what lets fasteners rattle loose at speed.

Combining Deflectors and Heat Shields Into One Heat Path

Heat shields and mid-frame air deflectors are usually sold as separate purchases, but Harley-Davidson's own product documentation treats them as one system. The CoolFlow Fan itself draws heat away from the rear cylinder and exhaust and pushes it toward the ground rather than blowing it across the cylinders, and the same OEM page recommends pairing the fan with Mid-Frame Air Deflector Kit P/N 57200157 for maximum performance on bikes the fan alone does not cover.

That pairing logic is the reason to plan both parts together. A deflector moves air around your legs; a shield blocks radiant heat at the source. Neither replaces the other.

On the shielding side, the numbers are softer than they look. The manufacturer's claim of more than 60% heat reduction for the DEI Heat Shield Liner Kit ($74.95, fitment 2017–2026) comes from DEI's own dual-layer aluminum and Dura 2000 construction. The same listing carries customer reviews ranging from roughly 15% to about 70% improvement. That spread is anecdotal, not measured, so treat the 60% figure as a vendor claim and your own riding position, exhaust setup and cooling package as the real variables.

Warranty, Dealer Attitude and Accessory Clearance

The warranty question has a narrower answer than most forum threads suggest. Harley-Davidson publishes a One-Year Parts & Accessories Warranty alongside a Custom Coverage Two-Year Parts & Accessories Warranty, and states that the parts and accessories warranty is one year and may not cover labor. The same page excludes damage from improper installation, which is why the torque step above matters more than the receipt.

Clearance is the second hesitation. Before ordering, walk the mid-frame area on your own bike and check what already occupies it: a flag mount, a windshield bracket, highway pegs, or a fairing lower. Accessories that share that space can interfere with a deflector's mounting plane. MotorFlagKing, a rider-founded American brand selling precision-fit, no-drill bolt-on Harley-Davidson equipment, makes flag-mount and windshield products of exactly that kind, so measure before you buy rather than after.

Key Takeaway: Check clearance against the accessories you already run before ordering, not after the box arrives.

Frequently Asked Questions

Can I run an aftermarket mid-frame air deflector set with a CoolFlow Fan?

Only if the set is the fan-compatible version. Harley-Davidson lists the kit Harley lists for fan-equipped bikes under its own part number, and that number is the one to match against a listing before you buy. A deflector shaped for a non-fan bike can sit where the fan housing needs to breathe, so the part number, not the product photo, is what settles it.

What should I do if the deflector rattles after install?

Recheck torque first, then hardware. A rattle that appears within the first few rides usually means a fastener backed off or a clip was reused instead of replaced. Loosen the affected bolts, confirm the bracket is seated flat against the frame, and retighten to the torque figure for your part number. If the rattle persists, look for contact between the deflector edge and the fairing or lower leg, which points to a fitment issue rather than a loose bolt.

Are the parts covered if a dealer installs them?

The parts carry the parts and accessories warranty, and dealer installation adds labor coverage on top of the part itself. Keep the dealer invoice: it is the document that ties the labor claim to the install date and the part number. Coverage terms vary by region, so confirm the window with the dealer at pickup rather than assuming it matches the parts term.

How do I confirm fitment from a VIN?

Decode the VIN to the exact model and model year, then check it against the model-year exclusions listed for that part. The VIN resolves the ambiguity that trim names and aftermarket listings leave open, particularly for bikes built near a model-year changeover. If the decoded year falls outside the listed range, the part is not confirmed for your bike regardless of what the seller states.

Conclusion

Run the four checks before you buy, and the rest of the decision gets much simpler.

• Confirm model year and model code. A deflector listed for "Harley Touring" is not the same as one listed for your FLHX or FLTR, and the 2009–2024 window contains several different front-end and fairing layouts.

• Confirm the fan kit. If your bike runs a CoolFlow Fan, the deflector has to clear the fan housing, not just the fairing.

• Separate must-haves from deal-breakers. Fitment, material, and included hardware are must-haves. Finish shade and brand name are preferences.

• Torque to the figure for your part number. Use the value that matches the hardware you actually have, not a number borrowed from a forum thread.

If you are still unsure whether a specific deflector fits your bike, check your model year and code against the fitment list before you order.

Next step: Confirm your exact model year and model code, then verify the part against the fitment list before you buy.
