Harley 4 Speed Trans Sprocket Differences: What Actually Matters

If you’ve ever searched “Harley 4-speed transmission sprocket” and got a hundred different answers, you’re not crazy. The tricky part is this: “4-speed” is a whole family of gearboxes and setups, and sprockets that look similar can still be wrong for your bike.

This guide is the rider-to-rider version of the truth. No hype. Just what changes, why it changes, and what you need to check so you don’t order a sprocket that won’t seat, won’t line up, or won’t live.

⚠️ Warning: Drivetrain work can put you on the side of the road fast if something’s loose or misaligned. If anything in here doesn’t match what you’re seeing on your bike, verify with your service manual or a trusted wrench before you ride.

Harley 4 speed trans sprocket differences start with identifying your 4-speed

Before we talk sprockets, you need a quick reality check: Big Twin 4-speed and Sportster 4-speed both exist, and people mix the terms constantly.

Big Twin vs Sportster: quick tells (no teardown required)

You don’t need to be a transmission historian. You just need enough info to stop guessing.

• What bike is it?

  • Big Twin: Knucklehead / Panhead / Shovelhead-era big twins, early FX bikes, etc.

  • Sportster: XL models up through the mid-’80s (4-speed era).

• What does your parts world call it? If your service manual / parts book calls it a “Big Twin 4-speed,” treat it that way.

If you don’t know (totally common when you bought the bike used), the safe move is: confirm the sprocket-side details directly.

What to check before ordering (the short list)

Here’s what actually determines whether a transmission sprocket will fit and run straight:

1. Spline count / spline fit (does it slide on the shaft correctly?)

2. Chain pitch or belt setup (530 chain sprocket vs belt pulley)

3. Offset (does the chain line up with the rear?)

4. Spacer + seal stack (does everything seat and seal?)

5. Tooth count (gearing changes = highway RPM changes)

Pro Tip: If you’re not sure what you have, pull the sprocket cover and take two photos: one straight-on of the sprocket and one from the rear showing chain alignment. That alone usually tells you whether you’re dealing with an offset situation.

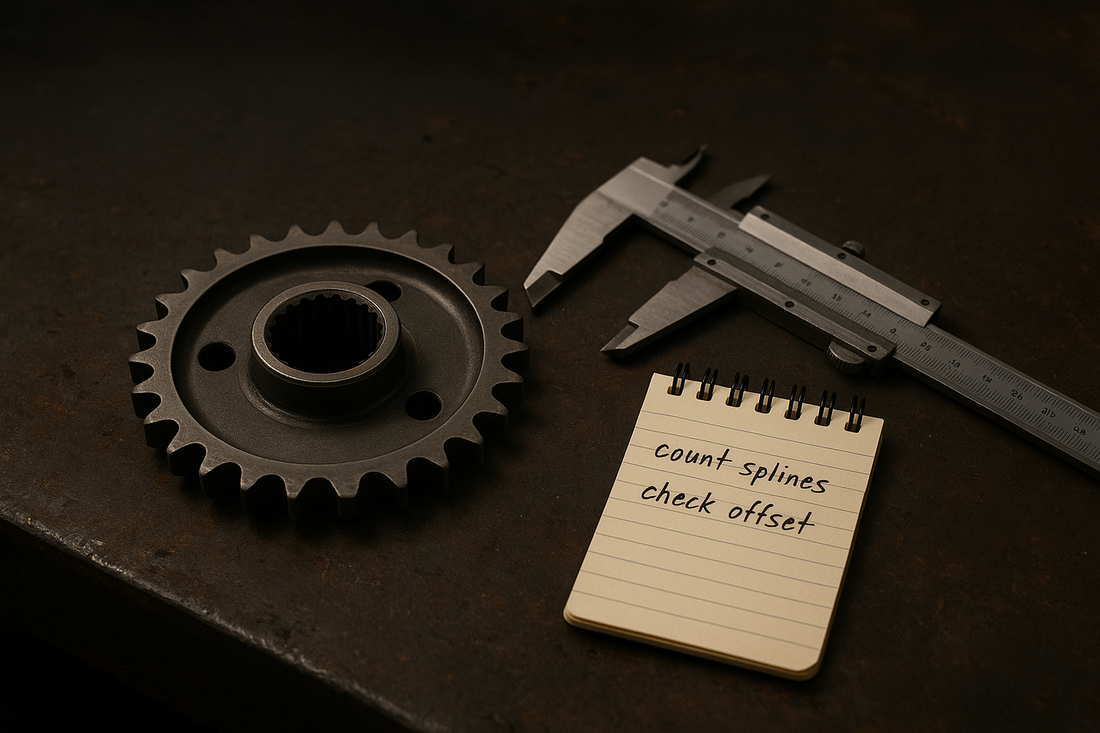

Spline count: why it matters (and why you still shouldn’t assume)

The spline interface is simple: the sprocket is basically a keyed coupling. If the spline count or spline profile doesn’t match, it won’t go on correctly—or it’ll go on “kinda” and ruin your day later.

Some aftermarket listings spell this out clearly. For example, a PBI transmission sprocket listing calls out “33 splines” as a spec, along with tooth-count options and how the offset is measured—useful as a reference point when you’re comparing parts (a PBI 33-spline transmission sprocket spec sheet (shows tooth options and offset measurement)).

The “why” behind spline problems

Most wrong-spline issues come from one of these situations:

• You’re buying for “a 4-speed” without confirming whether it’s Big Twin vs Sportster.

• Someone swapped parts years ago (common on older bikes).

• You’re doing a driveline change (belt-to-chain conversion, wide tire setup) and the sprocket that fits isn’t the sprocket that lines up.

Offset and chain line: the difference you feel (and hear)

Here’s where most riders get burned.

A sprocket can slide on perfectly and still be the wrong one if the chain line is off. Chain line problems don’t always show up on the stand. They show up on the road as:

W&W Cycles talks about this in the real world: offset sprockets are used when the chain line doesn’t fit after a wide-wheel conversion or when converting from belt to chain (W&W Cycles on offset transmission sprockets and correcting chain line).

• chain noise that won’t go away

• odd wear patterns on the sprocket teeth

• a bike that feels “gritty” or inconsistent under load

What “offset” really means (in plain English)

Offset is how far the teeth sit from the sprocket’s mounting face. Think of it like moving the chain inboard or outboard.

Different suppliers measure offset differently, which is why it matters when a listing tells you how they measured it. The PBI listing above defines offset as measured from the face that rests against the mainshaft bearing to the inside of the teeth—details like that keep you from comparing apples to oranges.

When offset sprockets usually show up

Offset is typically a “something changed” clue:

• wider rear tire

• different rear wheel spacing

• belt-to-chain conversion

• non-stock rear sprocket spacing

If your drivetrain is stock and your chain line is already clean, you probably don’t need offset.

⚠️ Warning: A bad chain line isn’t just annoying—it can eat sprockets, chew chains, and put sideways load where it doesn’t belong. If you’re unsure, verify chain alignment before you ride hard.

Spacers, seals, and the “super nut”: why some sprockets won’t sit right

On older Harley setups, sprocket fitment isn’t only “does it slide on.” It’s also:

• Does the sprocket seat fully?

• Does the stack-up seal properly?

• Does the hardware clamp correctly without bottoming out?

This is where riders start hearing about the “super nut.” In plain terms, it’s an aftermarket locknut designed to help address common oil-leak issues around the main drive gear bushing area on Harley four-speeds.

Billet Proof Design describes its super nut as a sealing-oriented solution for Big Twin 4-speeds, aimed at improving sealing on worn shafts and related leak paths (Billet Proof Design’s super nut notes (addresses sealing on Big Twin 4-speeds)). Lowbrow Customs describes the same general idea: it’s made to help with the common issue of oil leaks on four-speed transmissions (Lowbrow Customs’ ‘Super Nut’ overview for Harley four-speed transmissions).

Why this matters for sprocket “differences”

Even with the correct sprocket, the spacer/seal stack can change how everything seats. If your spacer is grooved, your seal is tired, or your hardware stack is mismatched, you can end up with:

• a sprocket that doesn’t clamp tightly

• leaks that look like “bad gaskets” but aren’t

• accelerated wear because parts are loaded wrong

If you’re chasing a leak or a sprocket that doesn’t seem to fit right, don’t just swap sprockets—inspect the whole stack.

Tooth count: what it changes on the highway

Tooth count is the sprocket difference riders feel the fastest.

The basic math is straightforward: final-drive ratio is rear teeth ÷ front teeth. Motorcyclist breaks it down clearly and explains what happens when you change either side of the equation (Motorcyclist’s explanation of final-drive ratio math (rear teeth ÷ front teeth)).

Smaller front sprocket vs larger front sprocket

• Smaller transmission sprocket (fewer teeth): shorter gearing

  • quicker jump off the line

  • higher RPM at highway speed

• Larger transmission sprocket (more teeth): taller gearing

  • lower RPM cruising

  • slightly lazier acceleration

The “why” behind gearing feel

A shorter ratio multiplies torque more, but it also makes the engine spin more for the same road speed. If you do long highway miles, too-short gearing can turn into heat, vibration, and fuel burn.

If you mainly ride back roads or your bike struggles to stay happy in top gear at your normal speeds, a gearing tweak can make the bike feel like it “woke up.”

What people get wrong about Harley 4-speed sprockets

Let’s kill a few common myths.

Myth 1: “If it fits on the splines, it’s the right sprocket”

Not always. Offset and spacer stack can still make it wrong. A sprocket that’s 1/8" off on chain line can act like it’s fine… until it isn’t.

Myth 2: “All 4-speeds use the same setup”

Even within the Big Twin world, design details matter. W&W Cycles notes that on the Big Twin 4-speed, the secondary chain sprocket mounts on the outside of the 4th gear sprocket spline, between the clutch and gearbox housing—context that helps explain why chain tension and driveline shock loads matter (W&W Cycles’ breakdown of the Big Twin 4-speed transmission (4th gear is 1:1)).

Myth 3: “Offset sprockets are only for wild custom bikes”

Not true. Offset often shows up when you change one thing (wheel/tire/belt/chain) and the chain line doesn’t follow. It’s a correction tool, not a flex.

FAQ

Are Big Twin and Sportster 4-speed transmission sprockets interchangeable?

Sometimes, but it’s not something you should bet a road trip on without verification. Some suppliers note shared fine-spline compatibility across applications, but you still need to confirm spline fit, offset/chain line, and spacer stack for your exact bike.

What’s the most important measurement before I order?

If you can only do one thing: verify the spline fit and confirm your chain line. A tooth-count choice is easy to change later; a misaligned driveline is expensive.

If I’m not sure what transmission I have, what’s the safest approach?

Treat it like a parts-counter problem:

• confirm what bike/model family you have (Big Twin vs Sportster)

• confirm whether you’re chain or belt

• confirm whether your chain line looks straight

• use specs from reputable listings to cross-check (splines, pitch, offset)

Next steps

If you want the cleanest path to the right sprocket, do this in order:

1. Identify your transmission family (Big Twin vs Sportster).

2. Confirm chain vs belt.

3. Check chain line (stock vs offset situation).

4. Only then pick tooth count based on how you actually ride.
